For any seasoned gamer, especially those with AMD Ryzen-based PCs, you know the importance of keeping your system up to date. One crucial update that can impact the compatibility, stability, and performance of your system is the AGESA update (AMD Generic Encapsulated Software Architecture). If you’re experiencing crashes or lag while playing Dragon Age: The Veilguard, an AGESA update might be just what you need to smooth out your gameplay.
Updating AGESA to Enhance Your Dragon Age Experience
In this guide, we will walk you through the essential steps to update your AGESA firmware to the latest version, ensuring that your AMD-based system meets the minimum CPU requirements for an optimized experience with Dragon Age: The Veilguard.
Warning: This guide is intended for experienced users who are comfortable with BIOS updates. Updating your BIOS carries some risks and, if done incorrectly, could potentially harm your PC. If you’re not sure about the process, it’s best to seek professional help.
Why Should You Update AGESA?
The AGESA update can significantly improve your gaming experience by:
- Ensuring compatibility with newer CPUs and RAM modules.
- Enhancing stability by fixing bugs and addressing hardware compatibility issues.
- Boosting performance through optimizations for better CPU and memory handling.
With the release of newer games like Dragon Age: The Veilguard, ensuring that your system runs optimally is crucial. Many users have reported crashes and performance issues, which could be mitigated by updating to the latest AGESA version.
A Word of Caution
BIOS updates are risky. While this guide aims to provide the most successful path for updating AGESA, it is important to note that there’s always a possibility of something going wrong. If you aren’t confident in your technical knowledge, reconsider proceeding or seek professional assistance.
If you decide to move forward, let’s embark on this magical journey to update your AGESA, increase system performance, and make your Dragon Age experience as smooth as possible!
Step 1: Gathering Information
Before you even think about flashing your BIOS, you must gather crucial system information. This will help you ensure that your motherboard needs an update and that you are downloading the correct firmware.
How to Identify Your Motherboard Model and Revision
- Check Your System Information:
- Press
Win + Rto open the “Run” dialog. - Type
msinfo32and press Enter. - Look for “System Model” – this tells you the model of your motherboard.
- Press
- Find Your Motherboard Revision:

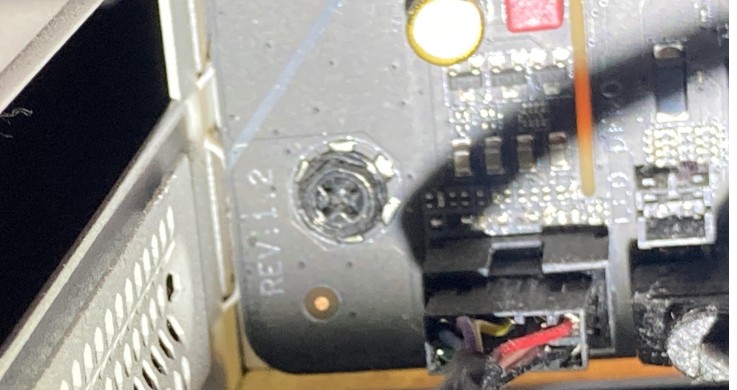

- The revision is often printed on the motherboard itself. You can typically find it on the bottom-left corner of the motherboard, close to where the power connectors are located.For example, my motherboard revision is REV 1.2.
- Check Your Current BIOS Version:
- In the System Information window, look for the “BIOS Version/Date” entry. This will tell you which version of the BIOS you are currently running.
- For example, my current BIOS was updated on September 2, 2024, but yours might be older.
Verify If You Need an Update
Once you have gathered your motherboard model, revision, and current BIOS version, it’s time to check whether your system requires an AGESA update.

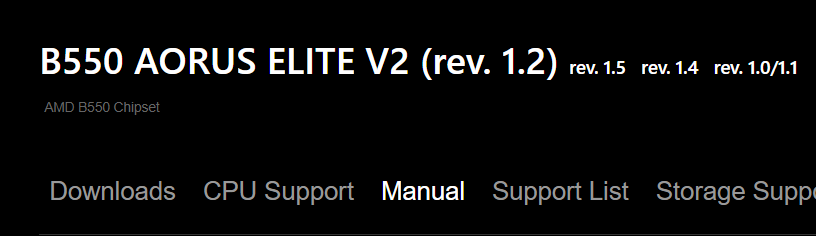

- Visit the official GIGABYTE website (or your motherboard manufacturer’s website) and search for your motherboard model.

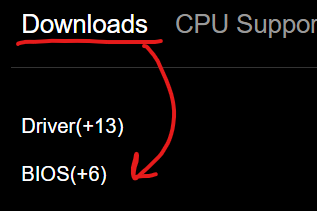

- Navigate to the Downloads section, then to the BIOS folder.
- Check the version history and see if your motherboard already supports the AGESA version you need.
For example, on my motherboard (the B550 AORUS Elite V2), the required AGESA update (version 1.2.0.7) was introduced in November 2022. So if you’re running a version from before that, it’s time to update!
If you determine that an update is necessary, you can proceed to the next steps. If not, you can skip this process and enjoy your game as is.
Step 2: Preparing for the Update
Once you’ve confirmed that an AGESA update is required, you need to properly prepare for the BIOS update process.
1. Download the BIOS Update
- From the motherboard manufacturer’s website, download the latest BIOS update file for your motherboard model and revision.

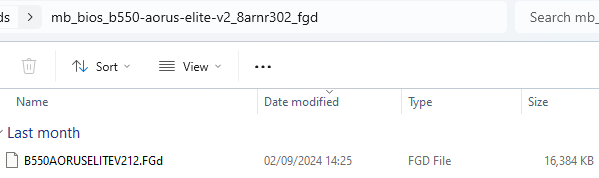

- After downloading, unzip the BIOS file to a folder where you can easily access it.
2. Prepare a USB Drive

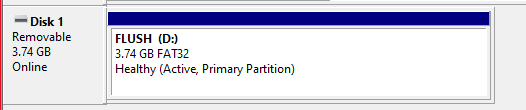

You’ll need a USB flash drive (preferably 4GB) to store the BIOS update file. If you don’t have a 4GB drive, use any USB drive that’s large enough, but be aware that the USB drive will be formatted, so back up any important files before proceeding.
Steps to prepare the USB drive:
- Plug your USB drive into your PC.

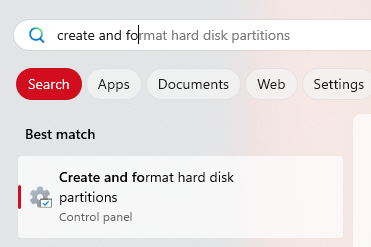

- Open File Explorer, right-click on your USB drive, and select Format.

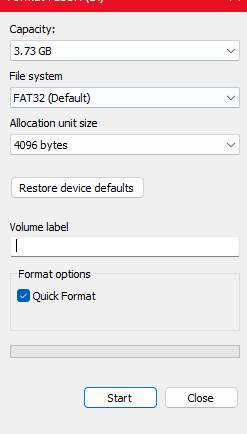

- Choose FAT32 as the file system and ensure “Quick Format” is checked, then click Start.
- Copy the extracted BIOS update file from your folder to the freshly formatted USB drive.
3. Check Which USB Port to Use for Q-Flash
For GIGABYTE motherboards, the Q-Flash utility (which allows you to update the BIOS without entering the operating system) needs to be accessed via a specific USB port.

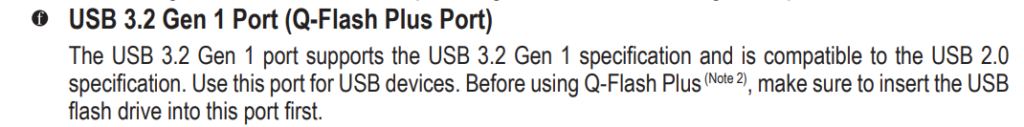

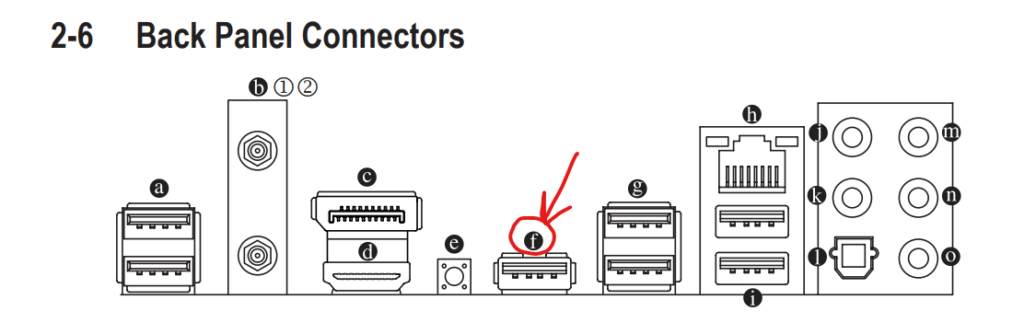

- Refer to your motherboard’s manual (available on the GIGABYTE website) to find which USB port should be used. For my B550 AORUS Elite V2, the USB 3.0 port “f” is designated for BIOS updates.
Step 3: Updating the BIOS
Now that your system is prepared, it’s time for the most critical part: flashing the BIOS.
1. Boot Into the BIOS (UEFI) Interface
- Restart your PC and repeatedly press the Del or F2 key (depending on your system) to enter the BIOS menu.
- Once in BIOS, look for the Q-Flash utility, which will allow you to update the BIOS.
2. Use Q-Flash to Start the Update
- Insert your USB drive into the designated USB port (as determined earlier).
- In BIOS, select Q-Flash from the menu.

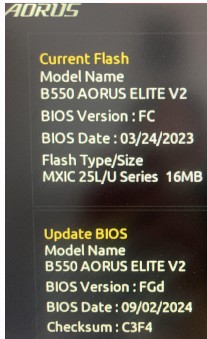

- Choose the BIOS file from the USB drive and confirm that you want to proceed with the update.
3. Wait for the BIOS Update to Complete
The system will start updating the BIOS. This process may take several minutes. Do not turn off or restart the computer during this process, as it could corrupt the BIOS and cause irreparable damage.
After the update completes, your PC will restart.
Step 4: Post-Update Configuration
Once the BIOS has been successfully updated, the system will likely revert to default settings. You need to reconfigure some settings to ensure your system runs optimally.
1. Restore Your XMP Profile
Your memory settings (XMP profile) will reset to default after the update. To restore the previous settings:
- Return to the BIOS settings and look for the XMP profile settings.
- Set it back to your preferred XMP profile (e.g., Profile 1 CL-16-16-16-20).
2. Check Memory Settings
After restoring your XMP profile, double-check the memory frequency to ensure it’s set correctly and that your RAM is running at its optimal speeds.
Final Thoughts: Enjoy a Smoother Dragon Age Experience
By updating your AGESA and BIOS, you’ve taken a step toward enhancing your system’s performance and stability. Whether you are facing crashes or simply want to make sure your system is running optimally for the latest games, the AGESA update is a crucial step.
Now that your system is up-to-date, it’s time to dive back into Dragon Age: The Veilguard and enjoy a smoother, more stable gaming experience.
Remember, BIOS updates come with risks, so if you’re ever unsure, it’s always best to seek help or leave it to the pros.
Share Your Experience
Have you successfully updated your AGESA? Or did you run into any challenges? Leave a comment below and share your experiences. Let’s continue to help each other out in the magical world of PC gaming!
